How to Make a Torpedo

Objects: "sphere", "cylinder", "cone".
Methods: "#declare", "union", "difference",
                    "matrix".

This sample shows how to construct a torpedo.

The Construction in details:

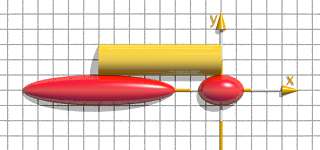

Step 1: The Body

sphere { <0,0,0>, 0.5
         scale<1.5,1,1>
       }  // end of sphere ------

cylinder{ <-4,0,0>,<0,0,0>,0.5
       } // end of cylinder -----

sphere { <0,0,0>, 0.5
         scale<  5,1,1>
         translate<-4,0,0>
       }  // end of sphere ------

Step 2: The Wings

#declare Wing =

cone { <0,0,0>,0.75,<0,1.00,0>,0.35

2.2: we shrink it in z direction by

       scale <1,1,0.1>

2.3: we sheer it in x direction by

       matrix<  1  , 0, 0,
              -0.25, 1, 0,
                0  , 0, 1,
                0  , 0, 0>

2.4: and we close the cone:

      } // end of cone -----

2.5: Now we bundle 4 wings
rotating them around the x axis:

union{
  object{ Wing rotate<0*90,0,0>}
  object{ Wing rotate<1*90,0,0>}
  object{ Wing rotate<2*90,0,0>}
  object{ Wing rotate<3*90,0,0>}

2.6: and move them at their position at the end of the tail:

  translate<-5.55,0,0>
  } // end of union

Step 3: All together now:

Scene description for a chain with POV-Ray:
".txt" file or ".pov" file
