How to Make an Airplane

Construction of the Body (2)



part III

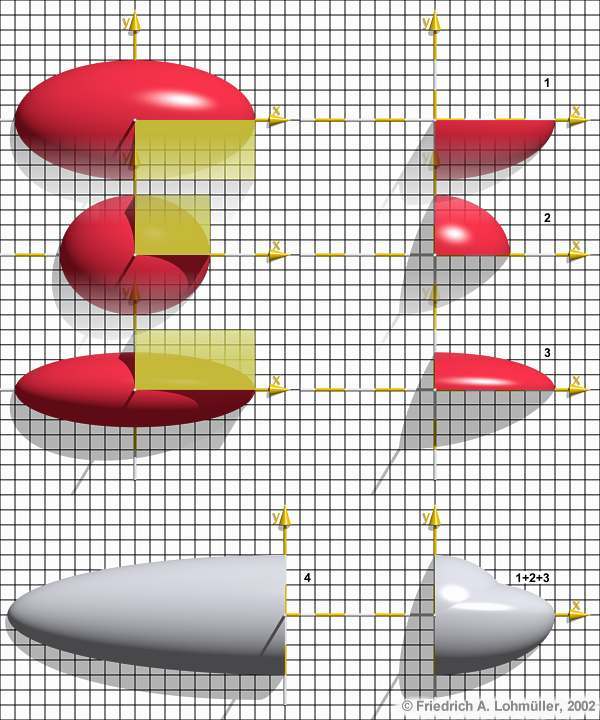

        The following image shows how the body of an airplane is assembled by intersections of ellipsoid deformed spheres and appropriate boxes:

airplane body

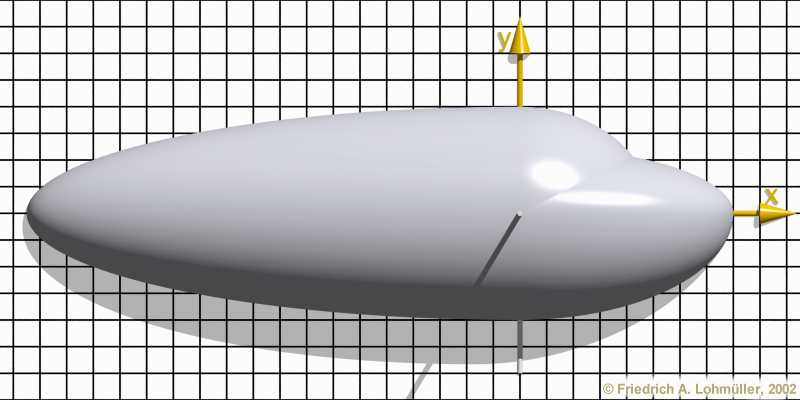

        Now a call of this macro will show the shape of the outside of the body:
//---------------------------------------------------------
 object { Body(R1, R2, R3, R4, R5)
         texture { pigment{color Silver}
                   finish {ambient 0.1 diffuse 0.8 phong 1}
                 }
        }
//---------------------------------------------------------
airplane body
